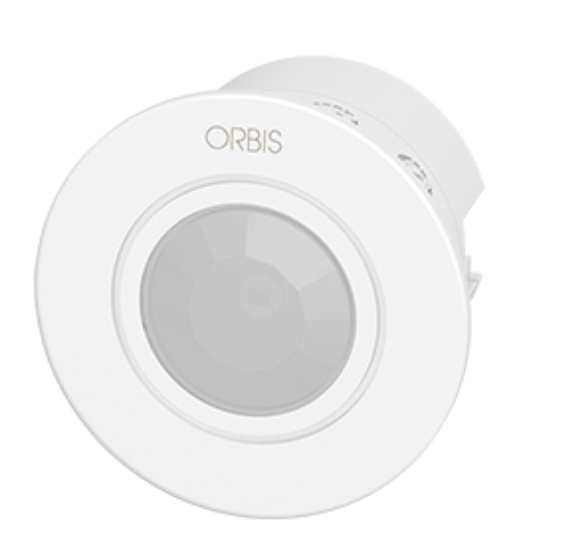

جهاز كاشف حركة 360’ ( داخلي )

Technicalcharacteristics

Power supply

230 V ac ± 10 %

Nominal frequency

50/60 Hz

Power consumption

5,5 VA (0,8 W)

Switching capacity

µ 6 A / 230 V~ cosφ = 1

Detection angle

360º

Detection field

Up to 10 m diameter at 2.5 m high

Light sensibility

3 to 2000 lux

Timing range

10 s to 15 min.

Degree of protection

IP20 according to EN 60529

Operating temperature

-20 ºC to +40 ºC

Limit temperature of operation

-20 ºC to +50 ºC

Note:

Features for 230 V ac. For other voltages, please contact us.

Max. Recomm. Load:

Incandescent

1200 W

Fluorescent

400 VA

Halogen (12 V ac)

1000 VA

Halogen (230 V ac)

1200 W

Low Consumption

500 VA

LED

500 VA

Downlights

500 VA
