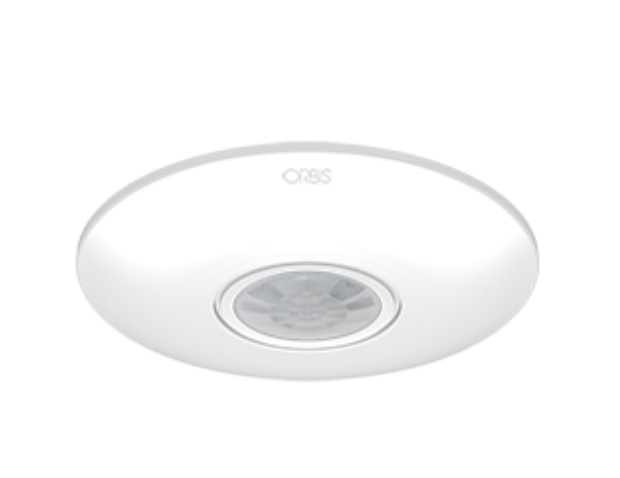

جهاز كاشف حركة 360’ ( سقفي )

Technicalcharacteristics

Power supply

230 V ac ± 10 %

Nominal frequency

50/60 Hz

Power consumption

5,2 VA (0,8 W)

Switching capacity

µ 6 A / 230 V cosφ = 1

Detection angle

360º.

Detection field

Up to 7 m diameter at 2.5 m high. Up to 9 m diameter a 3 m height.

Light sensibility

3 to 2000 lux.

Timing range

from 10 s to 30 min. Pulse function 1 s.

Degree of protection

IP20 according to EN 60529.

Operating temperature

-20 ºC to +40 ºC.

Limit temperature of operation

-20 ºC to +50 ºC.

Note

Features for 230 V ac 50 Hz. For other voltages, please contact us.

Max. Recomm. Load:

Incandescent

1200 W

Fluorescent

400 VA

Halogen (12 V ac)

1000 V

Halogen (230 V ac)

1200 W

Low Consumption

500 VA

LED

500 VA

Downlights
