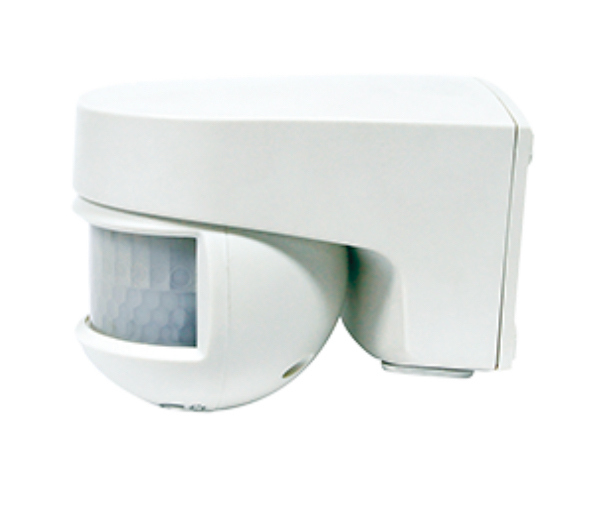

جهاز كاشف حركة 180’ ( جانبي )

Power supply

230 V ac, 50/60 Hz

Switching capacity

10 to 230 V ac

Timing

from 3s to 30 min.

Light sensibility

regulable 5-2.000 lux

Operating temp.

-20 ºC to +40 ºC

Limit temperature of operation

-30 ºC to +50 ºC.

Degree of protection

IP55 according to EN 60529

Detection angle

200º

Detection field frontal

12 m at 20ºC

Detection field side

8 m at 20ºC

Max. Recomm. Load:

Incandescent

2000 W

Fluorescent

1200 VA

Halogen (12 V ac)

1200 VA

Halogen (230 V ac)

2000 W

Low Consumption

1200 VA

LED

400 VA

Downlights

1200 VA
